AL-TI ALLOY SQUARE DRIVE HYDRAULIC TORQUE WRENCH

Name: ALTI ALLOY SQUARE DRIVE HYDRAULIC TORQUE WRENCH
Brand: Adam
Price: 2500 USD

Quality AL-TI ALLOY SQUARE DRIVE HYDRAULIC TORQUE WRENCH for sale

Brand Name : Adam

Model Number : 10 MXTA

Certification : CE & ISO

Place of Origin : U.S.A ,China

MOQ : 1

Price : 2500-8000

Payment Terms : T/T, Western Union

Delivery Time : 5-8 work days

Packaging Details : Al Alloy Box

Working Type : Double Acting

Model No. : 10 MXTA

Working Pressure : 700 bar

Torque Value : 15516 Nm

Wrench Type : Square Drive

Hexagon Size : 55 mm, 60 mm, 65 mm, 70 mm, 75 mm, 80 mm, 85 mm, 90 mm, 95 mm, 100mm, 105mm

Material : Al-Ti Alloy

Warranty : 3 years

Details : http://www.adam1987.com/mxta

Skype : brucewu127

M.T : 86 15058465661

Contact Now

Square Drive Hydraulic Torque Wrenches
MXTA Series Al-Ti Alloy Square drive hydraulic torque wrench.
Maximum Torque at 700 bar:
48,666 Nm
Square Drive Range:
¾ - 2½ inch

Simplicity
• Includes handle to improve tool handling and safety
• 360° click-on, multi-position reaction arm
• Push button square drive release to quickly reverse the
square drive for tightening or loosening
• Fine tooth ratchet prevents tool “lock-on”
• Single 360° hydraulic swivel manifold, complete with
screw lock couplings, increases wrench and hose
manoeuvrability.
Design
• Compact, Al-Ti Alloy construction for a
small operating radius
• Robust design with minimal parts enables easy on-site
maintenance without special tools
• Lightweight, ergonomic design for easy handling and an
easy fit, even in applications where access is limited
• Optimised strength-to-weight ratio
AL-TI ALLOY SQUARE DRIVE HYDRAULIC TORQUE WRENCH
Reliability
• All wrenches are nickel-plated for excellent corrosion
protection and improved durability in harsh environments.
Accuracy
• Constant torque output provides high accuracy across
the full stroke
• Accuracy of ± 3% can be achieved because the Uni-Body
construction reduces internal deflections.

Check the parameters and confirm the model No. of
the Al-Ti Alloy Square Drive Hydraulic Torque Wrench

Model No.	1MXTA	3MXTA	5MXTA	8MXTA	10MXTA	20MXTA	25MXTA	35MXTA
Torque Value (N.M)	183-1837	451-4512	752-7528	1078-10780	1551-15516	2666-26664	3472-34725	4866-48666
Bolt Diameter	16-36	22-48	27-56	30-64	36-72	42-90	48-100	64-115
Nut A/F (mm)	24-55	34-75	41-85	46-95	55-105	65-110	75-145	95-165
L1	133.5	169	202.5	216	237.5	299.5	313	361.5
L2	185.5	242	283.5	309	340.5	466.5	461	496.5
H1	50	68	80	90	100	120	137	153
H2	72	95	123	134	142	183	200	216
H3	95.5	127	149	167	182	220	247	282
H4	131	176.5	198.5	216.5	231.5	269.5	296.5	331.5
R1	26	34	39	47	51	59	66	77
R2	99	134	152	171	174	250.5	250.5	27
Square Drive	3/4"		1-1/2"	1-1/2"	1-1/2"	2-1/2"	2-1/2"	2-1/2"

Square drive hydraulic torque wrenches for Gas pipeline bolt preload
AL-TI ALLOY SQUARE DRIVE HYDRAULIC TORQUE WRENCH

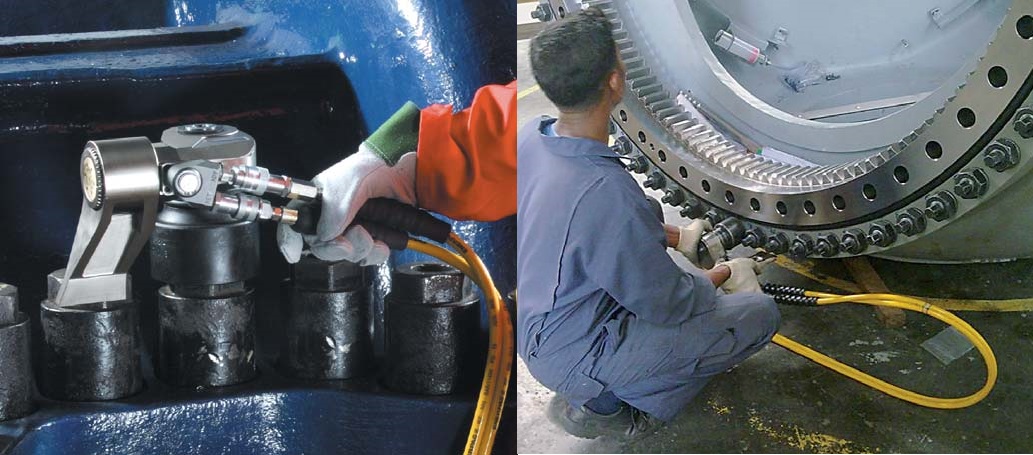

Square Drive Hydraulic Torque Wrench Applications

More information on detail, please feel free to contact me

AL-TI ALLOY SQUARE DRIVE HYDRAULIC TORQUE WRENCH Images
